Automated Vial and Bottle
Filling and Capping
SEVERAL ROBOTIC DISPENSING SOLUTIONS ARE AVAILABLE
Automate your vial and bottle filling, tipping and capping operations with a precise and affordable bench-top robot. These versatile, fully programmable robotic dispensing systems will automate and streamline manual bottle or vial filling and capping, and other labor-intensive operations, including pharmaceutical vial filling and stoppering. Choose "off the shelf" or let us customize a filling / capping solution to meet your unique needs, including specialized solutions such as filling and capping of Covid 19 test kit vials and test tubes.
The Ring Dex Automated Benchtop Dispensing Robot
Download Ring Dex System Brochure
This bench (or table) top dispensing robot is ideal for automating...
- Covid 19 test kits
- Fill and cap Covid 19 testing kit test tubes
- Fill and cap Covid 19 test kit vials
- Filling vials
- Filling cryovials
- Filling capping test tubes
- Filling bottles
- Filling / capping
- Filling containers
- Filling jars
- Lab filling
- Peristaltic filling
- Pharmaceutical vial filling and stoppering
- Positive displacement filling

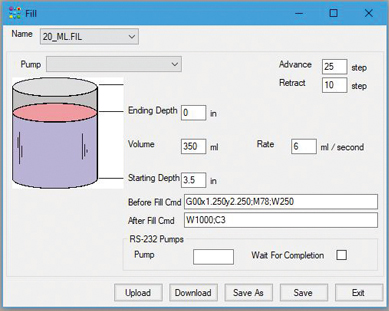

Advanced Filling Performance with Built-in Digital Pump Control
Fill files control the peristaltic (or positive displacement) pump with simple menu entry:
- Volume
- Position
- Diving nozzle
- Snuff-back
- Logic (additional)
A limitless number of Fill files may exist in the machine. Ideal for future expansion.

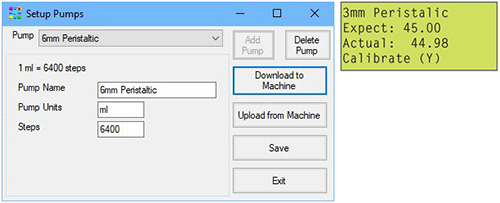

On Board Pump Calibration
Allows calibrating the peristaltic pump with the system controls. Just enter the actual weight from a sample. Automatically adjusts all encoder values. Several pump files may exist for different tubing sizes, nozzles, etc.

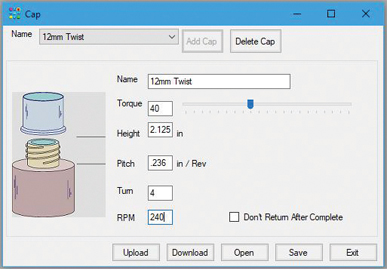

Control Capping Torque & Cap Pitch
Cap files control the station with simple menu entry of pre-programmed parameters:
- Bottle height
- Cap thread data
- RPM & number of turns
- Torque
A limitless number of Fill files may exist in the machine. Ideal for future expansion.

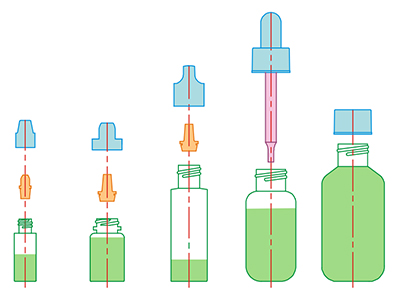

Ideal for Screw-on or Snap-fit Caps!
Containers may be processed with their caps screwed on or with the caps supplied loose. Software logic is included for either scenario.
Automate Vial and Bottle Filling,
Tipping and Capping Operations

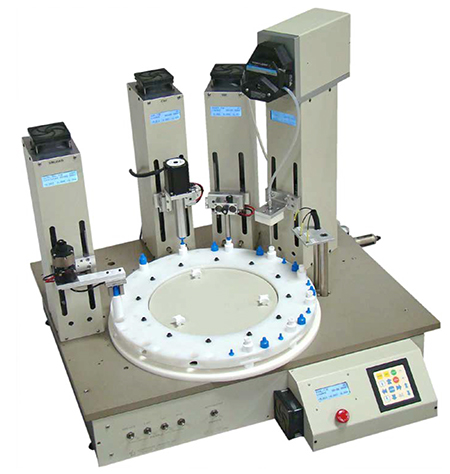

The Ring Dex system provides a unique solution for streamlining your manual filling, tipping, capping and assembly operations with one precise and affordable bench top package.

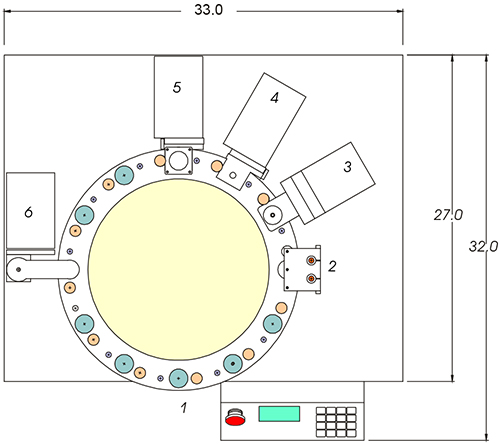

The machine consists of work stations mounted around a centrally located indexing ring.
Programmable, High-Speed Benchtop Dispensing
- Pre Programmed Station Cycles
- Smooth & Quiet Operation
- Look Ahead Motion Technology
Dials are removable for quick changeover. Great for processing families of small bottles & vials.
Our exclusive "Soft Torque" dial features adjustable speed and torque control.
Latest Embedded Technology
Network Connectivity for Speed & Reliability

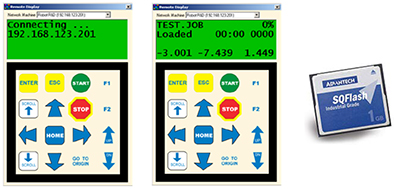

Each work station is self contained and includes an embedded processor and CF memory card for true multi-tasking & real time performance. The base machine and stations are internally network connected for speed & reliability. The Ring Dex is menu driven and may be controlled from the front panel touch pad /LCD or the “virtual pendant” on your PC. A bar code scanner input is included as well.
A True File Based Solution
The obvious advantages of a file based system:
"Your machine will be better tomorrow than it is today."
The ability to upgrade the machine’s software by downloading a single file, ensures that your investment will be as prudent as it is productive.
The Ring Dex Robot is the Operator's Choice!
Just press the foot pedal. Your operators will appreciate the ergonomics and ease of use with the dispensing robot’s setup, its calibration and file management systems. Your techs will love the zero maintenance, machine tool quality construction.

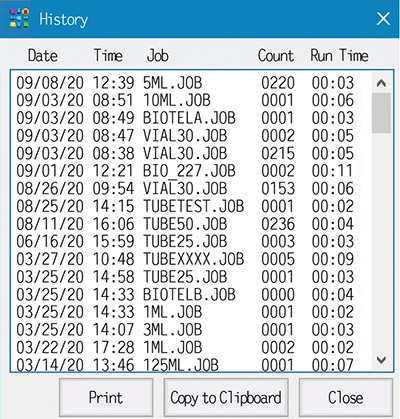

Track Bottle Filling Production Data
Production logging information is stored during each cycle.
The History file may be accessed from the Windows Suite and then printed, copied into a report or saved as a spread sheet file.
Ring Dex - The Affordable Benchtop Robot
FOR AUTOMATED FILLING AND CAPPING
